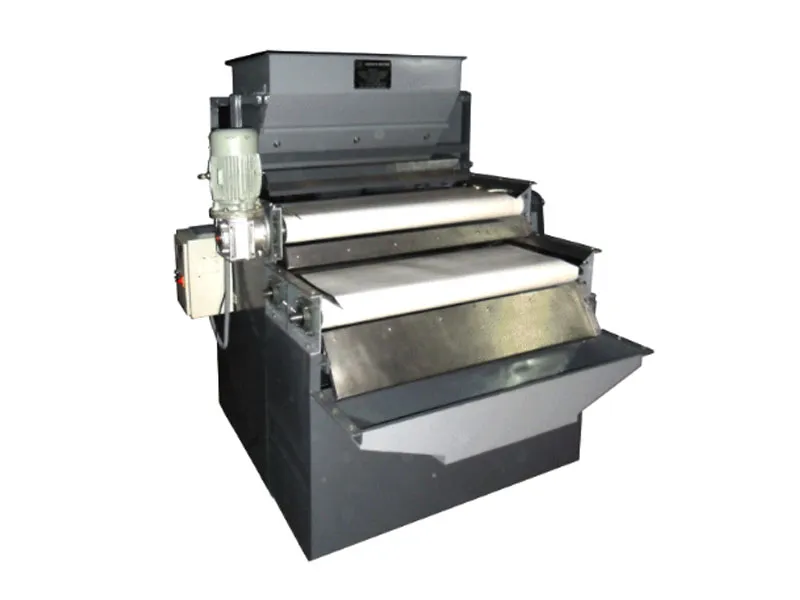

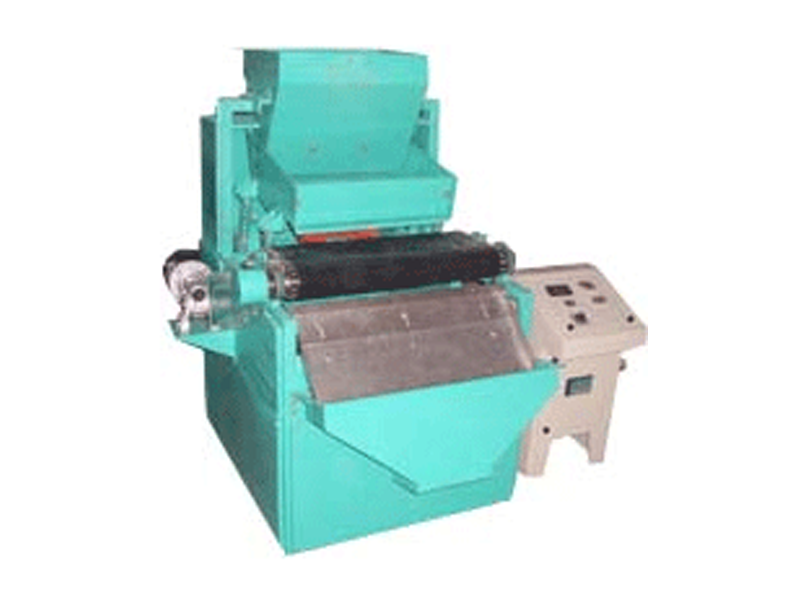

Shreenth were the first to introduce Indigenous High Intensity. High Gradient dry permanent magnetic roll separators in the Indian market. These machines which are manufactured are base on the popular Permanent roll Technology which has been used successfully in hundreds of Industrial minerals applications around the world.
The machine incorporates high energy rare earth neodymium permanent magnetic roll assembly which is manufactured and assembled under proprietary specifications to generate unsurpassed magnetic field gradients. Under this high intensity magnetic field, weekly magnetic contaminants can be easily removed efficiently. The magnetic rolls can be structured to treat particle sizes ranging from 200 mesh up to 50 mm.
| MODEL NO. | NOS. OF MAGNETIC ROLL | CAPACITY M.T. PER HR. | ROLL DIA.M.M. | LENGTH M.M. |
|---|---|---|---|---|
| SI671SRS | 1 | 1.0 TON | 75 | 650 |
| SI671DRS | 2 | 1.0 TON | 75 | 650 |
| SI672SRS | 1 | 1.5 TON | 75 | 900 |
| SI672DRS | 2 | 1.5 TON | 75 | 900 |
| SI673SRS | 1 | 2.0 TON | 75 | 1050 |
| SI673DRS | 2 | 2.0 TON | 75 | 1050 |
| SI674SRS | 1 | 3.0 TON | 75 | 1250 |
| SI674DRS | 2 | 3.0 TON | 75 | 1250 |
Shree Ram was the first to introduce indigenous high intensity, high gradient magnetic roll separator for use of dry material in indian market. it is capable of separating a wide variety of materials from different industries in an efficient and economical manner. Shree Ram Magnetics uses high energy rare earth neodymium permanent magnets assembled in a proprietary configuration to generate forces of magnetic attraction, which can be used for processing any material from ferromagnetic to weakly paramagnetic.
the exceptionally high magnetic gradient achieved by the unique Shree Ram Magnetics design results in extremely large separation forces, exceeding those of any electromagnetic induced roll separators.
