Flush Face Plate Magnates deliver optimum tramp metal separation performance when used in above-the flow chute or belt application. When installed over the material flow the powerful Flush Face plate magnets deliver continuous magnetic protection for down stream processing equipments by lifting ferrous tramp out of the product flow stream.
Square or rectangular shapes are offered. Customized sizes, shapes and design can also be offered.

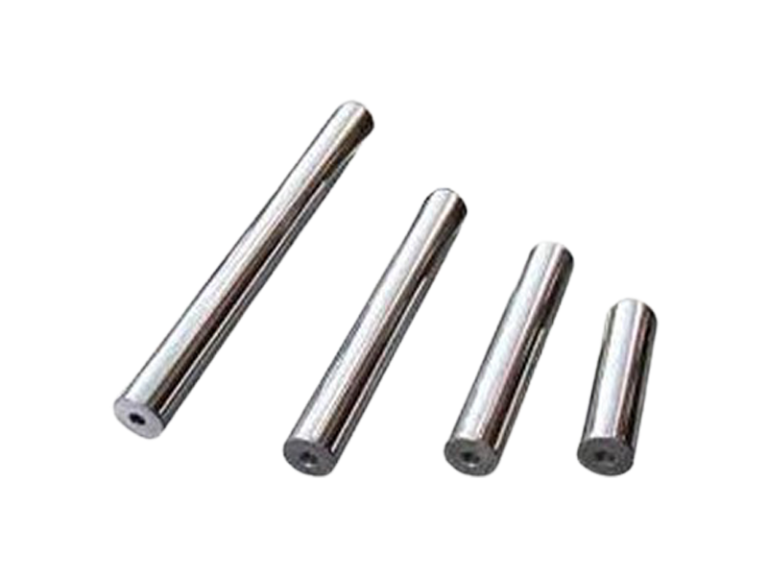

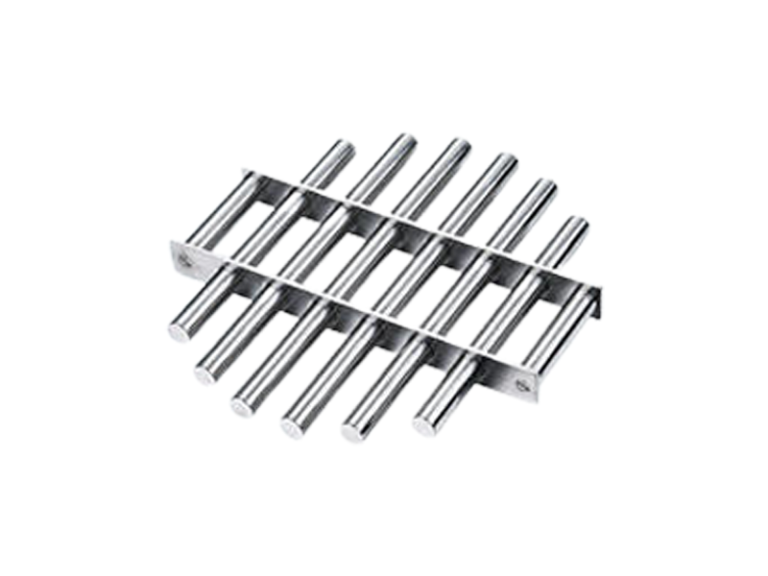

Magnetic filters are made up of stainless steel tubes. Each tube consists of an array of permanent magnetic discs specially designed and configured to generate high magnetic forces. The filters can be supplied using either ferrite or rate earth magnets. The tubes have a diameter of either 3/4″ or 1″ or 1.5″. The filters can be supplied in various sizes with width and length varying from 9 from 36 inches. Circular or rectangular shapes are offered. Customized sizes, shapes and design can be offered.
| MODEL NO. | SIZE OF MAGNETIC PLATE | ||
|---|---|---|---|
| Length mm | Width mm | Thickness in mm | |
| SI 568-FS | 300 | 130 | 28 |
| SI 569-FS | 300 | 130 | 28 |
| SI 570-FS | 300 | 130 | 28 |

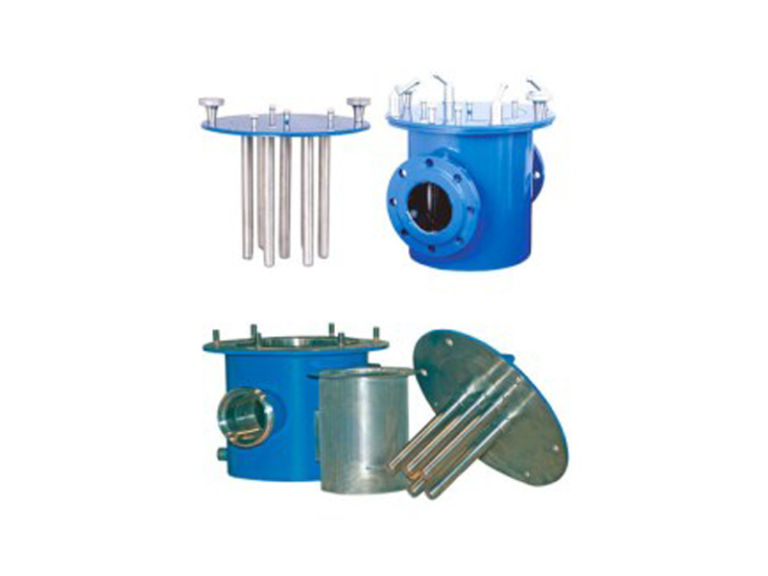

Shree Ram ‘T-Trap Magnetic’ Separators are designed for heavy duty large volume liquid and semi-liquid line flow system.
The T – Trap employs a slip in cage of stainless steel permanent m magnet tubes. The function of the magnet tubes is such that the captured tramp metal particles migrate to the rear of the tubes where they remain protected from wash-off until the tubes are cleaned.
The magnet cage has positioning lugs that mate with locating recesses in the body of the tramp. Having a top access bolt on steel plate and seal, the T-Tramp is easy to clean. With the top removed the magnet cage is simply lifted out, Wiped clean and reinstalled.
Available in 7 standard line sizes from 2 to 18 inches in diameter, T-Traps can also be produced to meet special applications.
